Fw190D-9 Aircraft Handbook - Weapons layout

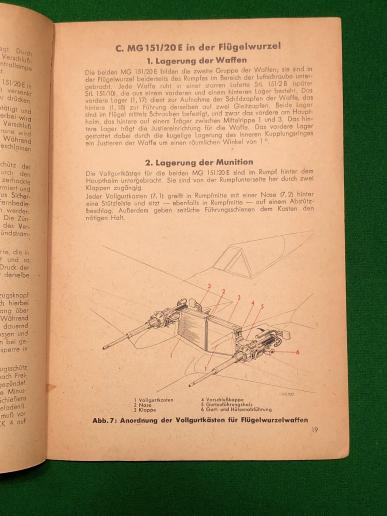

1944 Aircraft Handbook for the Fw190D-9 describing the weapons fit and systems for this particular aircraft. Extensive description of weapons fit, firing circuits, weapon mounts and operation. Illustrated with diagrams, sketches and pul out plates. Good, clean condition with some pages displaying the brittleness common to German official publications.

Code: 8153
